Horizontal shaft shredders
Fixed or Offset Master-Field Shredder
![Broyeur Masterfield déportable Desvoys](/media/broyeur-masterfield-deportable-desvoys.jpg)
![Logo Masterfield fixe et deport](/media/logo-masterfield-fixe-et-deport.jpg)
Compact, sturdy shredder to fit all tractors.
The MASTER-FIELD range offers great versatility for maintaining grassed areas, shredding brush, crop residues and green manure. For more targeted uses, a range of options is available for you to configure the shredder to suit your exact requirements.
Key points
Rotor![MASTER-FIXE rotor](/media/master-fixe-rotor.jpg)
Rotor equipped with heavy duty B1 hammer cutters for versatile shredding and suction (grass, brambles, bushes, etc.).
Housing![Caisse Master-Field tole](/media/caisse-master-field-tole.jpg)
Housing equipped with a basic armour plate (10 mm) for good resistance to impacts and wear.
Optional bolt-on armour plates can further strengthen the machine.
Coupling![Attelage broyeur Master-field](/media/attelage-broyeur-master-field-1.jpg)
Masterfield hitch Hydraulic offset clevis hitch mounted onto double XC chromed steel bars for excellent sturdiness and longevity.
Masterfield hitch Fixed, centred hitch to limit weight and overhang.
Cutting height![Rouleau Arbo-cut](/media/rouleau-arbo-cut.jpg)
Adjustable cutting height via a reinforced roller with removable sealed end caps.
Satellite![Adapt satellite Excel cut](/media/adapt-satellite-excel-cut.jpg)
Available optional satellite, which is easy to fit onto your shredder to mow grass in orchard rows.
Specifications
Working width | 2.35 to 3.10 m |
---|---|
PTO speed | 540 or 1000 rpm |
Tractor power | 70 to 220 hp |
Hitch | category 2 fixed or offset clevis hitch |
Cutting diameter | 475 mm |
Number of hammer cutters | 26 to 34 |
Counter-cutters | removable U-shaped, top and bottom |
Terrain tracking |
roller with removable sealed end caps and a pair of bolt-on Hardox wear-resistant skids |
Poids | 1120 to 1315 kg |
Options | machine can be upgraded to suit your needs. |

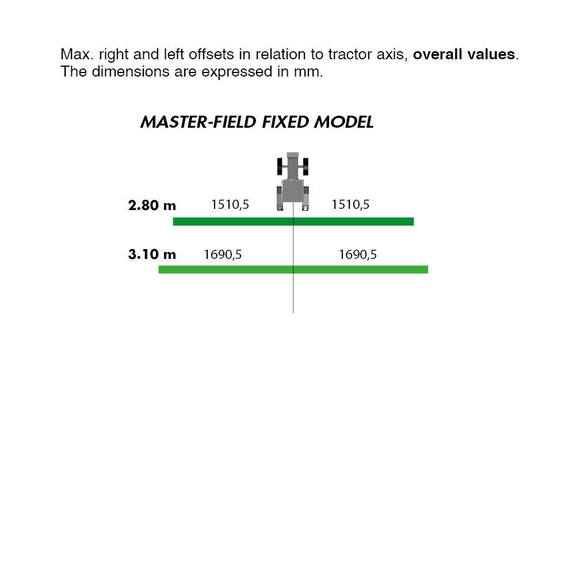

![Déport master-filed fixe - EN.JPG](/media/thumbnails/deport-master-filed-fixe-enjpg.jpg)

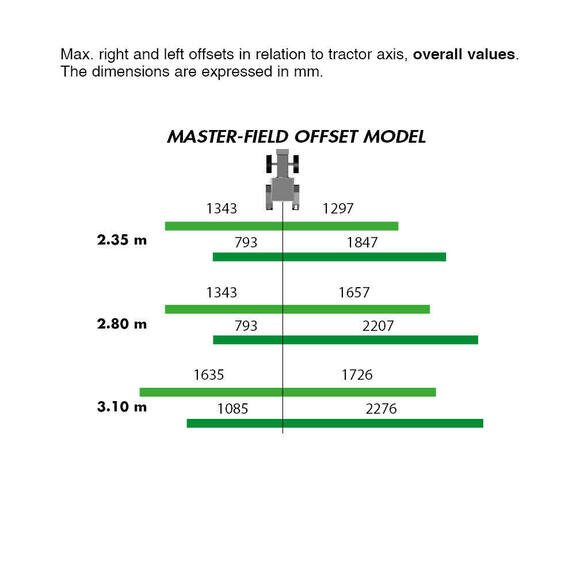

![Déport master-filed dép EN.JPG](/media/thumbnails/deport-master-filed-dep-enjpg.jpg)
