Horizontal shaft shredders
DMF standard Shredder
![DMF Standard - Desvoys](/media/dmf-standard-2-1.jpg)
![logo DMF standard](/media/logo-dmf-standard.jpg)
A verge shredder designed for professional shredding.
The DMF STANDARD shredder offers impressive shredding capacity. Suitable for regular uses, multi-purpose shredding and brush-cutting. It is lightweight, meaning it can be hitched onto low-powered tractors to maintain excellent manoeuvrability.
Key points
Rotor![ROTOR DMF PG](/media/rotor-dmf-pg.jpg)
Large diameter rotor with B1 hammer cutters, optimally positioned for fine shredding in all circumstances.
Sturdy chassis and hitch![bras_DMF_STANDARD](/media/bras-dmf-standard.jpg)
One-piece bent-tube floating hitch and double parallelogram arm with integrated cylinder for greater sturdiness and extended tool life.
"NON-STOP" safety device![Securite- DMF standard](/media/securite-dmf-standard.jpg)
Automatic reset "NON-STOP" safety device for flexible operation and mechanical retraction in the event of an obstacle.
Armour plate![DMF_ENTREPRISE tole](/media/dmf-entreprise-tole.jpg)
Armour plated shredder housing for improved resistance to impacts and wear.
Adjustable cutting height![patin_DMF_STANDARD](/media/patin-dmf-standard.jpg)
Adjustable cutting height via a reinforced roller with removable sealed end caps.
Skids with bolt-on wear-resistant plate for greater sturdiness and extended tool life.
Specifications
Working width | 1.60 to 2.00 m |
---|---|
PTO speed | 540 rpm |
Tractor power | 55 to 150 hp |
Hitch | floating clevis hitch with parallelogram offset |
Cutting diameter | 435 mm |
Number of hammer cutters | 20 to 22 |
Counter-cutters | flat welded, top and bottom |
Adjustable terrain tracking | roller with removable sealed end caps |
Weight | 920 to 1000 kg |
Options | machine can be upgraded to suit your needs. |

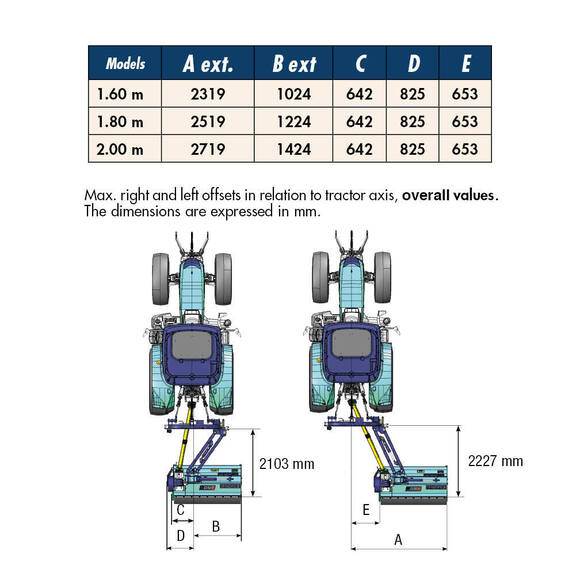

![déport DMF Standard EN.JPG](/media/thumbnails/deport-dmf-standard-enjpg.jpg)

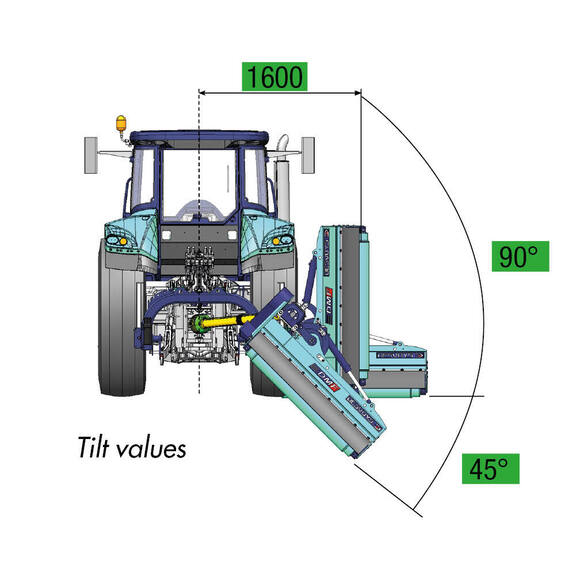

![inclinaison DMF standard EN.JPG](/media/thumbnails/inclinaison-dmf-standard-enjpg.jpg)
