Horizontal shaft shredders
Neptune Shredder
![Neptune-broyeur -DE](/media/neptune-broyeur-de-1.jpg)
![Logo Neptune](/media/logo-neptune.jpg)
Front- or rear-mounted shredder for medium-sized tractors.
The Neptune shredder is highly versatile with its push or pull coupling. It is comparable to the Master-field and designed for less intensive use.
Key points
Coupling![Attelage Neptune](https://www.desvoys.fr/media/attelage-neptune-1.jpg)
Hitch mounted onto double front and rear slide to reduce the strain on the housing during use.
Incorporated double free wheel gearbox to adapt to the PTO direction of rotation.
Compact size![rotobroyeur Neptune](https://www.desvoys.fr/media/rotobroyeur-neptune.jpg)
Suitable for medium-power tractors with optimised working widths.
Rotor![Calypso rotor](https://www.desvoys.fr/media/calypso-rotor.jpg)
Rotor fitted with B2 solid hammer cutters, optimised for efficient shredding in all circumstances.
Hydraulic offset![attelage Neptune](https://www.desvoys.fr/media/attelage-neptune.jpg)

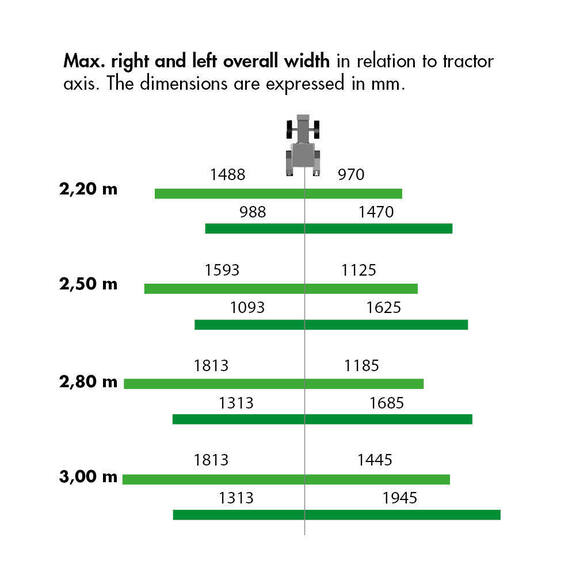

Hydraulic offset on double slide for even greater manoeuvrability.
Adjustable cutting height![embout rouleau DMF](https://www.desvoys.fr/media/embout-rouleau-dmf-1.jpg)
Adjustable cutting height via a reinforced roller with removable sealed end caps for optimum life time.
Specifications
Working width | 2.20 to 3.00 m |
---|---|
PTO speed | 1000 rpm |
Tractor power | 60 to 160 hp |
Hitch |
category 2 clevis hitch with hydraulic offset on double slide |
Cutting diameter | 435 mm |
Number of hammer cutters | 20 to 24 |
Counter-cutters | removable, smooth, top and bottom |
Adjustable terrain tracking | reinforced roller with removable sealed end caps. |
Weight | 1030 to 1180 kg |
Options | refer to the product sheet below |
![valeur de déport Neptune-EN .JPG](/media/thumbnails/valeur-de-deport-neptune-en-jpg.jpg)
